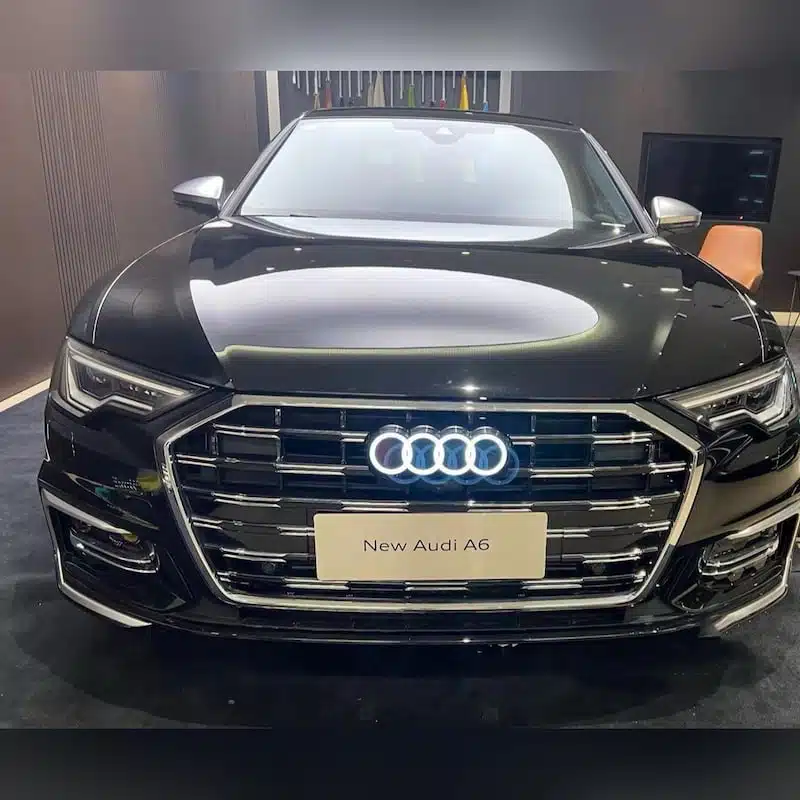

The Audi A6 light up emblem replaces the factory front grille badge with a dynamic 5D LED-illuminated version that glows when your headlights or daytime running lights are active.
The animated effect activates on lock and unlock — the four Audi rings build and illuminate as you approach the car — then remain on continuously while driving.
This single product covers three generations of the A6 platform and fits the A6, S6, and RS6 variants across the C6, C7, and C8 model years.
Audi A6 Light Up Emblem Key Features
- 5D dynamic LED effect — animated illumination sequence on lock/unlock, continuous glow while driving. No app required.
- Chrome OEM-matched finish — chrome-plated surface matches the factory A6/S6/RS6 badge exactly in size and finish. No visible white border or protruding edge when unlit.
- Pure white LED output — clean white illumination matching factory LED headlight colour temperature. No yellow tint.
- Waterproof sealed housing — fully dustproof and waterproof, rated for 10,000+ hours working life.
- No coding required — two-wire 12V connection to headlight or DRL circuit. No VCDS, no OBD adapter, no dealer visit.
- Two colour options — Crystal (standard chrome) or Black (gloss black chrome).
- 1-year full warranty — covers LED failure, housing seal failure, and connector faults.
Compatibility — Audi A6 S6 RS6 Light Up Emblem Size Guide
Size 273mm — Front Grille Emblem:
Audi A6 C6 (2004, 2005, 2006, 2007, 2008, 2009, 2010, 2011)
Audi S6 C6 (2006, 2007, 2008, 2009, 2010, 2011)
Size 288mm — Front Grille Emblem:
Audi A6 C7 (2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018)
Audi S6 C7 (2012, 2013, 2014, 2015, 2016, 2017, 2018)
Audi RS6 C7 Avant (2013, 2014, 2015, 2016, 2017, 2018)
Size 252mm — Front Grille Emblem:
Audi A6 C8 (2019, 2020, 2021, 2022, 2023, 2024)
Audi S6 C8 (2019, 2020, 2021, 2022, 2023, 2024)
Audi RS6 C8 Avant (2020, 2021, 2022, 2023, 2024, 2025)
To confirm fitment, measure your current factory grille badge across its widest point.
If it measures approximately 273mm, order the 273mm.
If it measures approximately 288mm, order the 288mm.
If it measures approximately 252mm, order the 252mm.
If you are unsure, contact our team with your exact model and year, and we will confirm the correct size.
Technical Specifications
- Size options: 273mm / 288mm / 252mm
- LED colour: Pure white
- Colour options: Crystal chrome / Gloss black chrome
- Power supply: DC 12V (±10%)
- Power consumption: 2W
- Operating voltage: 13V maximum — do not exceed
- Current draw: 0.1A
- Wire length: 0.6m
- Package contents: 1x A6/S6/RS6 light-up emblem, wiring harness, 3M adhesive tape
Wiring Guide
Red wire (positive): Connect to the DRL circuit, headlight circuit, or taillight circuit.
Do not connect to the brake light circuit — brake light voltage spikes will damage the emblem.
Black wire (negative/earth): Connect to any body earth point in the engine bay.
Night-only mode: Wire red to the headlight positive → emblem activates with headlights only.
Always-on mode: Wire red to the DRL or taillight positive → emblem activates whenever the ignition is on.
Frequently Asked Questions — Audi A6 S6 RS6 Light Up Emblem
Which size do I need for my Audi A6, S6, or RS6? +
Order the 273mm for A6 C6 (2004–2011) and S6 C6 (2006–2011).
Order the 288mm for A6 C7 (2011–2018), S6 C7 (2012–2018), and RS6 C7 Avant (2013–2018).
Order the 252mm for A6 C8 (2019–2024), S6 C8 (2019–2024), and RS6 C8 Avant (2020–2025).
If unsure, measure your factory badge across its widest point before ordering.
Does this fit the RS6 Avant C8? +
Yes.
The RS6 C8 Avant (2020–2025) uses the same 252mm front grille badge as the C8 A6 and S6.
Order the 252mm size and select your preferred colour — Crystal chrome or Gloss black.
Note: check whether your RS6 C8 has an adaptive cruise control radar sensor positioned behind the front grille badge before ordering — later build dates with ACC may have the sensor in this location.
Does the A6/RS6 light-up emblem work with adaptive cruise control? +
The C6 and C7 A6 platforms do not typically have a front radar sensor positioned behind the grille badge — ACC on these generations uses a different sensor location.
The C8 platform (2019+) may have a front radar sensor behind the grille badge, depending on specification and build date.
If your C8 A6, S6, or RS6 has ACC, check whether the sensor is behind the front emblem before ordering — fitting an LED emblem over a radar sensor may affect detection range or trigger dashboard warnings.
If in doubt, contact our team with your VIN, and we will confirm compatibility.
Crystal or Black — which finish should I choose? +
Crystal chrome matches the factory A6/S6/RS6 badge finish exactly and looks completely OEM when unlit — the most popular choice for A6 owners who want a subtle, premium appearance.
Gloss black chrome suits RS6 and S6 owners who have black styling elements — black mirror caps, black grille trim, or an RS6 in a dark exterior colour — and want a consistent blacked-out aesthetic across the front of the car.
Both produce identical pure white illumination when active.
Is the emblem waterproof? +
Yes.
The sealed housing is fully dustproof and waterproof, rated safe for rain, road spray, and standard car washing including automatic and hand washing at normal pressure.
Rated for 10,000+ hours of working life.
How does the dynamic effect work? +
The dynamic effect has two modes.
First, an animated sequence activates each time you lock or unlock the car — the four rings illuminate in a sweeping motion.
Second, a continuous steady glow remains active while the DRL or headlights are on during driving.
Both modes run automatically — no app, no remote, and no configuration required.
Will fitting this emblem void my Audi warranty? +
In most cases no.
The installation leaves all factory wiring completely intact, requires no ECU or module changes, and is fully reversible — the factory badge can be refitted at any time.
Retain your original badge and proof of purchase for complete peace of mind.
Still have a question? Contact our support team — we reply within 24 hours.
