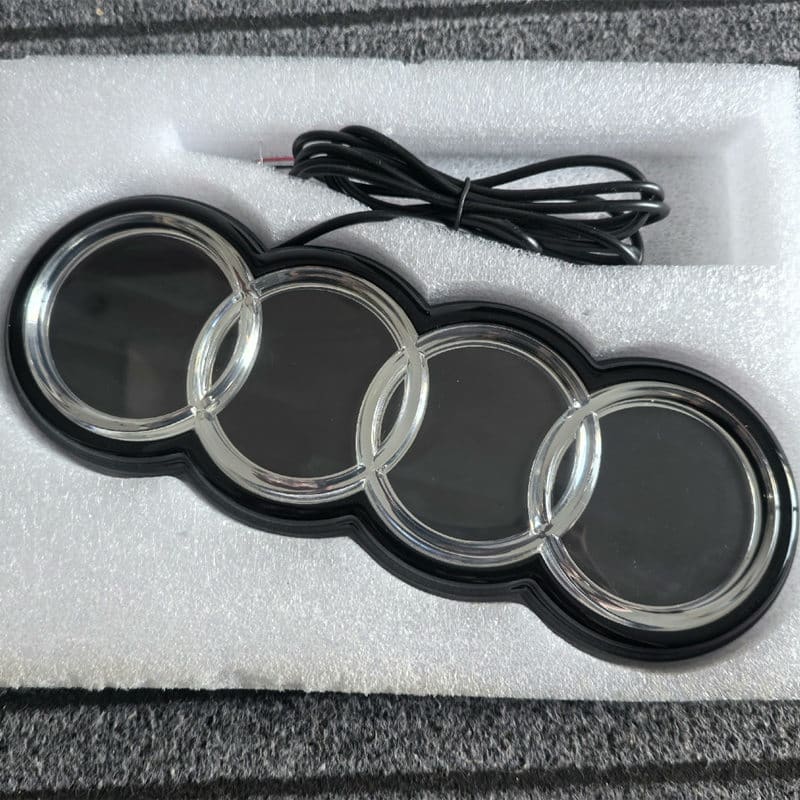

The Audi A8 LED emblem replaces the factory front grille badge on the A8 D3 and D4/D5 platforms with a dynamic illuminated version featuring four animation effects that activate every time you lock, unlock, or start the car.
The four-ring Audi logo glows in pure white LED, producing a clean, premium appearance that matches the A8’s flagship luxury positioning.
⚠ Night Vision Compatibility Notice: Audi A8 models equipped with the Night Vision Assist system have a thermal imaging camera sensor located directly behind the front grille badge.
The 2nd-generation dynamic emblem is not compatible with Night Vision-equipped models — fitting it will obstruct the thermal camera.
If your A8 has Night Vision, select the “With Night Vision” variant, which uses the 1st-generation Hollow Style emblem designed to preserve sensor function.
If unsure whether your A8 has Night Vision, check your MMI menu for a Night Vision option or contact our team with your VIN.
Audi A8 LED Emblem Key Features
- 4 dynamic animation effects — outside-in sweep, up-and-down motion, chain-link effect, and flash on/off. Activates automatically on lock, unlock, and ignition start. No app required.
- Night Vision compatible option — “With Night Vision” variant uses 1st-generation Hollow Style emblem that preserves the thermal camera function.
- Chrome OEM-matched finish — chrome-plated surface matches the factory A8 badge exactly in size and finish. No visible white border or protruding edge when unlit.
- Pure white LED output — clean white illumination matching factory LED headlight colour temperature. No yellow tint.
- Waterproof 2nd-gen housing — enhanced waterproofing rated for 10,000+ hours working life.
- No coding required — two-wire 12V connection to headlight or DRL circuit. No VCDS, no OBD adapter, no dealer visit.
- 1-year full warranty — covers LED failure, housing seal failure, and connector faults.
Compatibility — Audi A8 LED Emblem Model Guide
A8 (2005–2010) — D3 Platform:
Audi A8 D3 (2005, 2006, 2007, 2008, 2009, 2010) — all engine variants including 3.0 TDI, 4.2 TDI, 4.2 FSI, 6.0 W12
Audi S8 D3 (2006, 2007, 2008, 2009, 2010)
A8 (2011–2017) — D4 Platform:
Audi A8 D4 (2011, 2012, 2013, 2014, 2015, 2016, 2017) — all engine variants
Audi A8 D4 L Long Wheelbase (2011–2017)
Audi S8 D4 (2012, 2013, 2014, 2015, 2016, 2017)
A8 (2018–2023) — D5 Platform:
Audi A8 D5 (2018, 2019, 2020, 2021, 2022, 2023) — all engine variants including 55 TFSI, 60 TFSI e PHEV, 3.0 TDI
Audi A8 D5 L Long Wheelbase (2018–2023)
Audi S8 D5 (2020, 2021, 2022, 2023)
Audi A8 Hybrid D5 (2019, 2020, 2021, 2022, 2023)
To confirm fitment, select the correct model year group from the variant selector above.
If you are unsure of your platform generation, check the build year on your V5/registration document and match it to the ranges above.
Contact our team if you need confirmation before ordering.
1st Gen vs 2nd Gen — Which Type Do I Need?
2nd Generation Dynamic Emblem (Without Night Vision): Full-face LED illumination with 4 animation effects.
Suitable for all A8 models that do not have the Night Vision Assist system.
This is the standard choice for the majority of A8 owners.
1st Generation Hollow Style Emblem (With Night Vision): Illuminated outer ring only — the centre of the badge has a hollow section that allows the thermal camera to function unobstructed.
Required for all A8 models fitted with the Night Vision Assist option.
Night Vision was available as an option on A8 D4 (2011–2017) and D5 (2018–2023) models and is identifiable by the Night Vision display on the MMI screen when driving in darkness.
Technical Specifications
- LED colour: Pure white
- Colour options: Silver chrome / Gloss black chrome
- Power supply: DC 12V (±10%)
- Power consumption: 2W
- Operating voltage: 13V maximum — do not exceed
- Current draw: 0.1A
- Wire length: 0.6m
- Package contents: 1x Audi A8 LED emblem, wiring harness, 3M adhesive tape,
Wiring Guide
Red wire (positive): Connect to the DRL circuit, headlight circuit, or taillight circuit.
Do not connect to the brake light circuit — brake light voltage spikes will damage the emblem.
Black wire (negative/earth): Connect to any body earth point in the engine bay.
Night-only mode: Wire red to the headlight positive → emblem activates with headlights only.
Always-on mode: Wire red to the DRL or taillight positive → emblem activates whenever the ignition is on.
Frequently Asked Questions — Audi A8 LED Emblem
How do I know if my Audi A8 has Night Vision? +
Night Vision Assist was available as a factory option on A8 D4 (2011–2017) and D5 (2018–2023) models.
To check, start the car and drive in darkness — if your MMI screen displays a thermal camera image of the road ahead with pedestrian/animal detection highlights, your A8 has Night Vision.
Alternatively, check your original order specification or the car’s option sticker (usually found in the spare wheel well or service booklet).
If still unsure, contact our team with your VIN and we will confirm before you order.
What is the difference between the 1st Gen and 2nd Gen emblem? +
The 2nd-generation emblem (Without Night Vision) has full-face LED illumination across the entire badge surface with 4 animation effects.
The 1st-generation Hollow Style emblem (With Night Vision) illuminates the outer ring and inner arcs only, leaving a hollow centre section that allows the thermal Night Vision camera to function without obstruction.
Both versions produce white LED illumination and are chrome-plated to match the OEM badge finish.
Does this fit the Audi S8? +
Yes.
The S8 uses the same front grille badge size and mounting system as the standard A8 across all three generations — D3 S8 (2006–2010), D4 S8 (2012–2017), and D5 S8 (2020–2023).
Select the corresponding year group in the variant selector and choose your preferred colour.
What are the four animation effects? +
The four effects are: outside-in sweep (light travels from the outer edge of each ring inward), up-and-down motion (rings illuminate from top to bottom sequentially), chain-link effect (rings illuminate in a chain sequence), and flash on/off (full logo flash).
All effects activate automatically on lock, unlock, and ignition start — no app or manual configuration required.
Silver or Black — which finish should I choose for the A8? +
Silver chrome matches the factory A8 badge finish exactly and looks completely OEM when unlit — the most appropriate choice for the A8’s flagship luxury positioning.
Gloss black suits S8 owners or A8 owners with a black styling package, black grille, or dark exterior colour such as Mythos Black or Daytona Grey.
Both produce identical pure white illumination when active.
Is the emblem waterproof? +
Yes.
The 2nd-generation sealed housing is fully dustproof and waterproof, rated safe for rain, road spray, and standard car washing including automatic and hand washing at normal pressure distances.
Rated for 10,000+ hours of working life.
Does fitting this emblem require coding or a dealer visit? +
No.
The emblem connects to the standard 12V headlight or DRL circuit using two wires.
No VCDS, no OBD adapter, no module changes, and no dealer visit are required.
The installation is fully reversible — the factory badge can be refitted at any time.
Does this fit the A8 L (long wheelbase)? +
Yes.
The A8 L long wheelbase uses the same front grille badge as the standard-wheelbase A8 across all generations.
Select the correct year group in the variant selector — the wheelbase does not affect badge sizing.
Still have a question? Contact our support team — we reply within 24 hours.
